CHAIN CONVEYOR

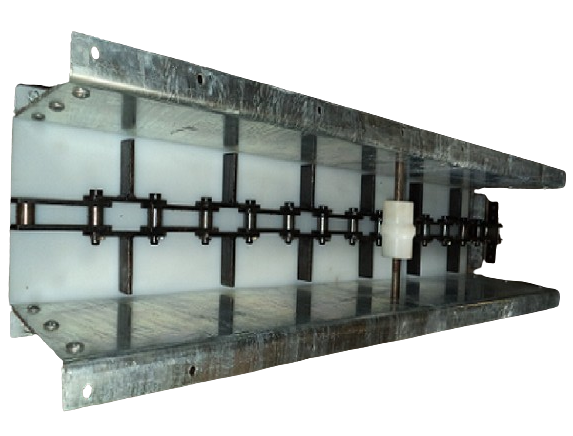

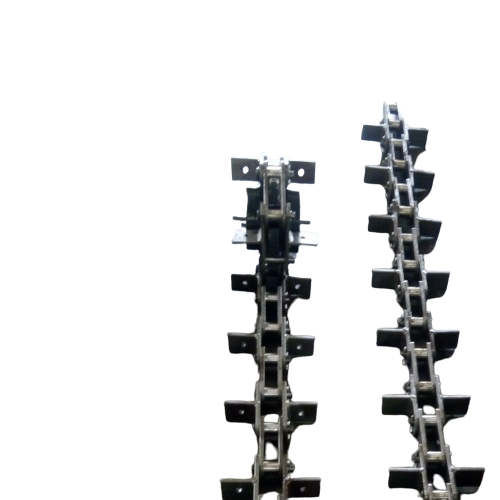

1.CHAIN


  •  The steel scrapers can be either bent or welded. It is also possible to attach plastic flights.
  •  Available Size of Chain 4” To 6” Pitch
  •  Breaking Load 5 Ton To 50 Ton.
  •  Pins & Bush Are Duly Heat Treated.
  •  Strong grip due to special design.
  •  Durable, highly Wear resistance.
  •  Longer life
  •  MOC: Link -C45/En8D, Bush-C45/En8D & Pin – 16MnCr5/20MnCr6

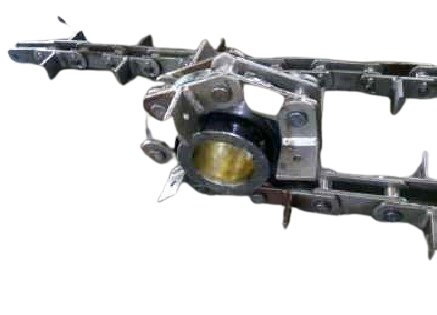

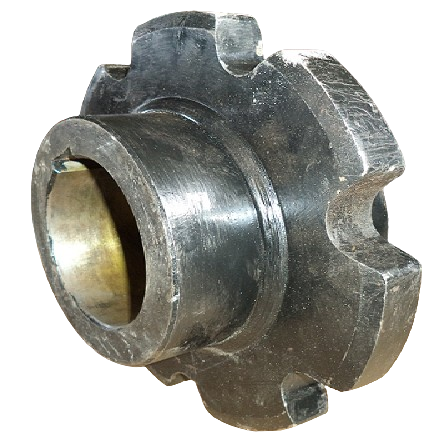

2.SPROCKETS

  •  Available Size of Chain 4″ To 6″ Pitch
  •  Breaking Load 5Ton To 50 Ton.
  •  Pocket & Teeth are Duly Heat Treated 300BHN.
  •  Durable, highly Wear resistance.
  •  Longer life

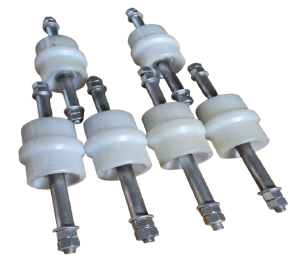

3.RETURN ROLLER

  •  Nylon roller utilizes high quality.
  •  Easy For maintenance
  •  Standard Sizes-CC150, CC200, CC250, CC300,
  •  CC350, CC400 & CC500.
  •  As per customer’s requirement we manufactures return roller.

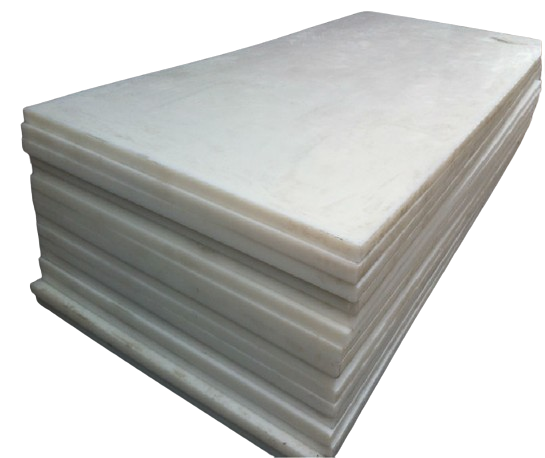

4.UHMWPE BOTTOM LINER

  •  UHMWPE are used to meeting parts to avoid wear of material.
  •  Self-lubricating, non-stick surface.
  •  Thickness 8mm & 10mm.
  •  Static and dynamic coefficients are significantly.
  •  UHMWPE Liners are used to reduce friction, wear & energy consumption of equipment
  •  Easy For maintenance
.

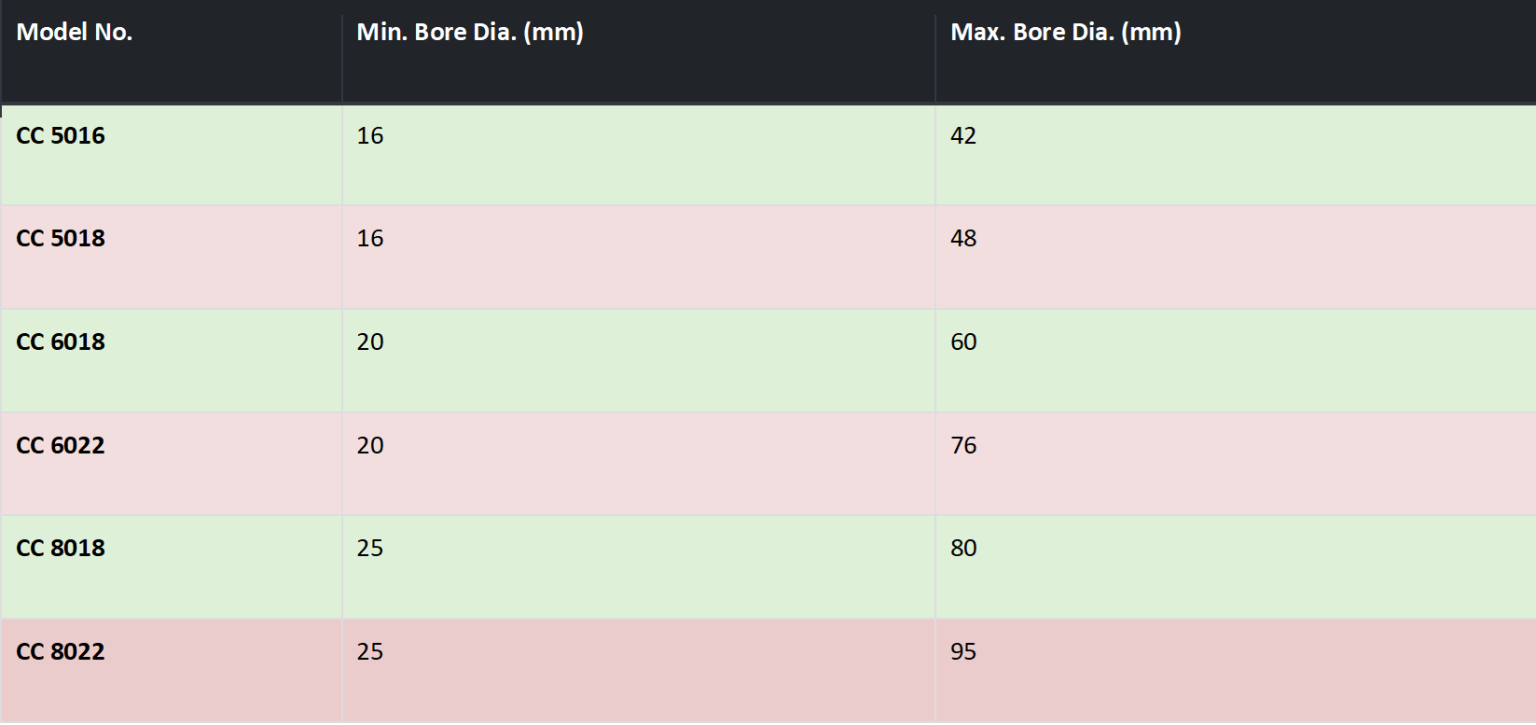

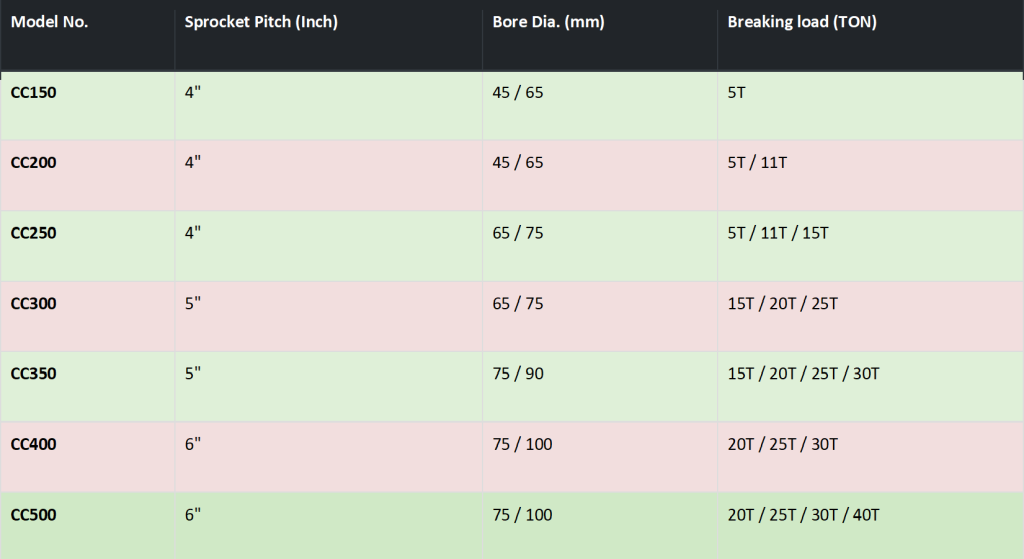

SELECTION CHART

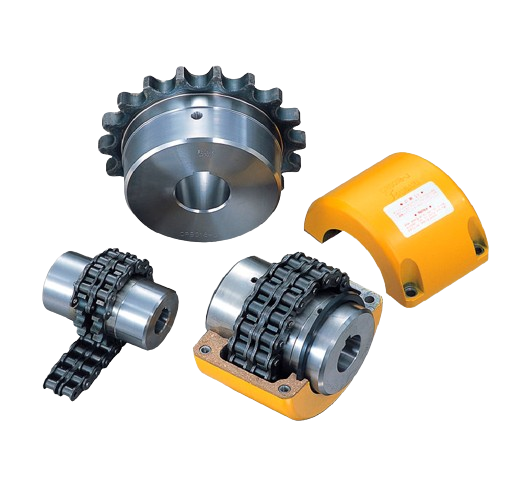

5.COUPLINGS

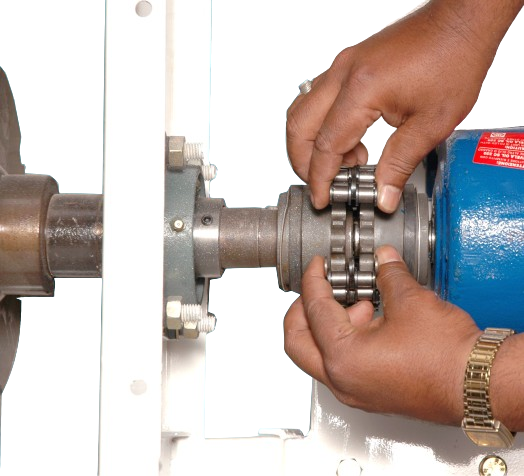

Roller Chain Flexible Coupling

  •  Couplings are commonly used in slow speed, high torque applications
  •    Strong grip due to special design
  •   Durable, highly Wear resistance
  •    Durable, highly Wear resistance.
  •    Longer life & durable
  •    Easy For maintenance
