BUCKET ELEVATOR SPARES

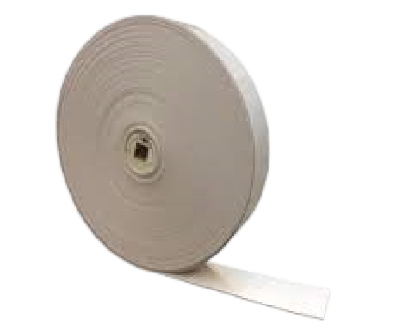

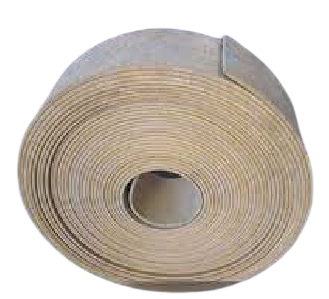

1.ELEVATOR BELTS



  •  We offers conveyor belt for handling food grains, these bets are white & black in color and do not transfer any odor or color to food grains which were handled.
  •  We offer food grade belts for the application of high resistance again temperature & oil resistant.
  •  General Purpose Belts Grade M-24 and N-17 with abrasion resistant covers for carrying sharp and bulky materials at high speeds.
  •  Greater Resistance to water and mildew
  •  Excellent trough-ability and flexibility
  •  Fine finishing, high durability, excellent performance, Robustness.

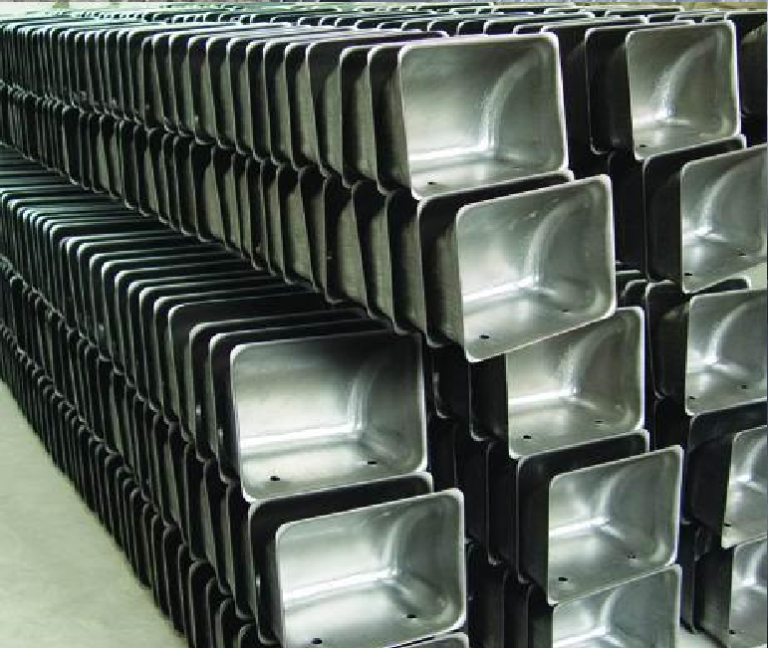

2.BUCKETS

  •  Light Weight Design
  •  Molded Under high pressure further adds strength & toughness
  •  These buckets have maximum volume capacity due its design.
  •  Abrasive Resistance.
  •  Clean Discharge

SEAMLESS SHOVEL TYPE PLASTIC METALLIC BUCKET

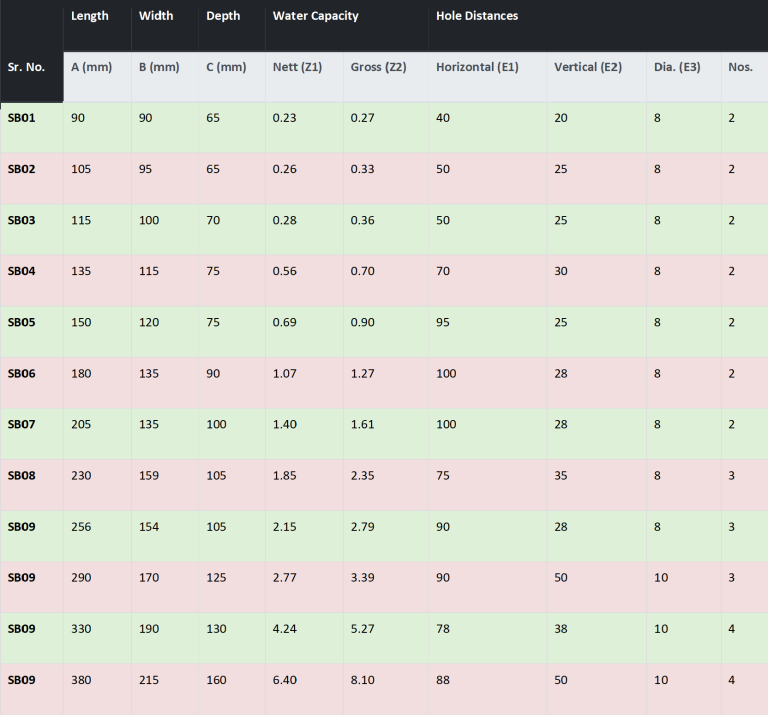

SELECTION CHART

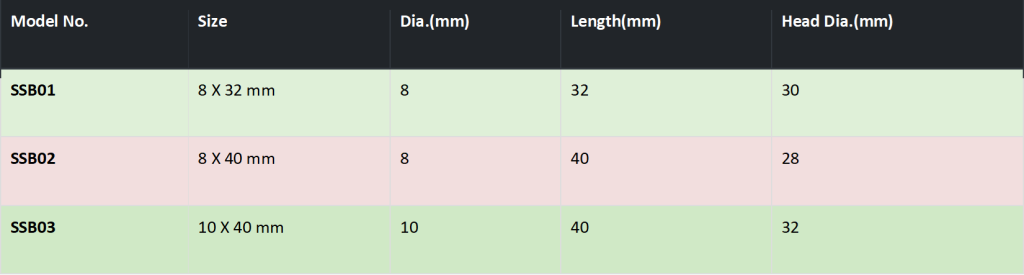

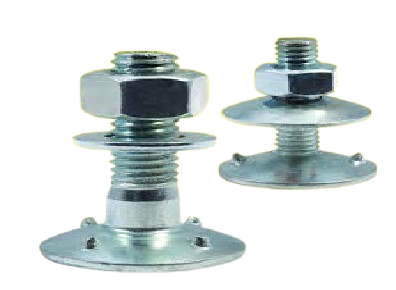

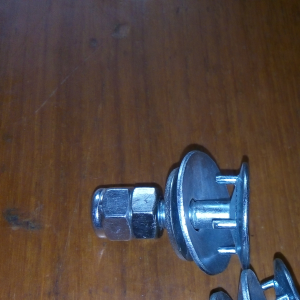

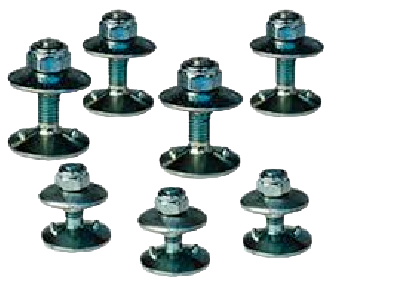

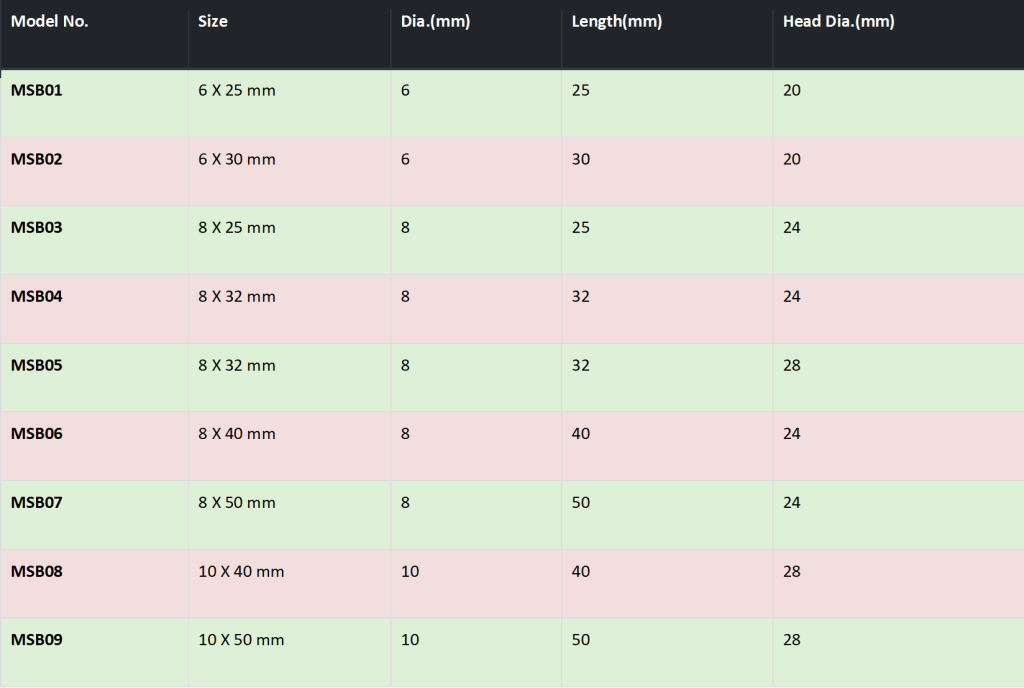

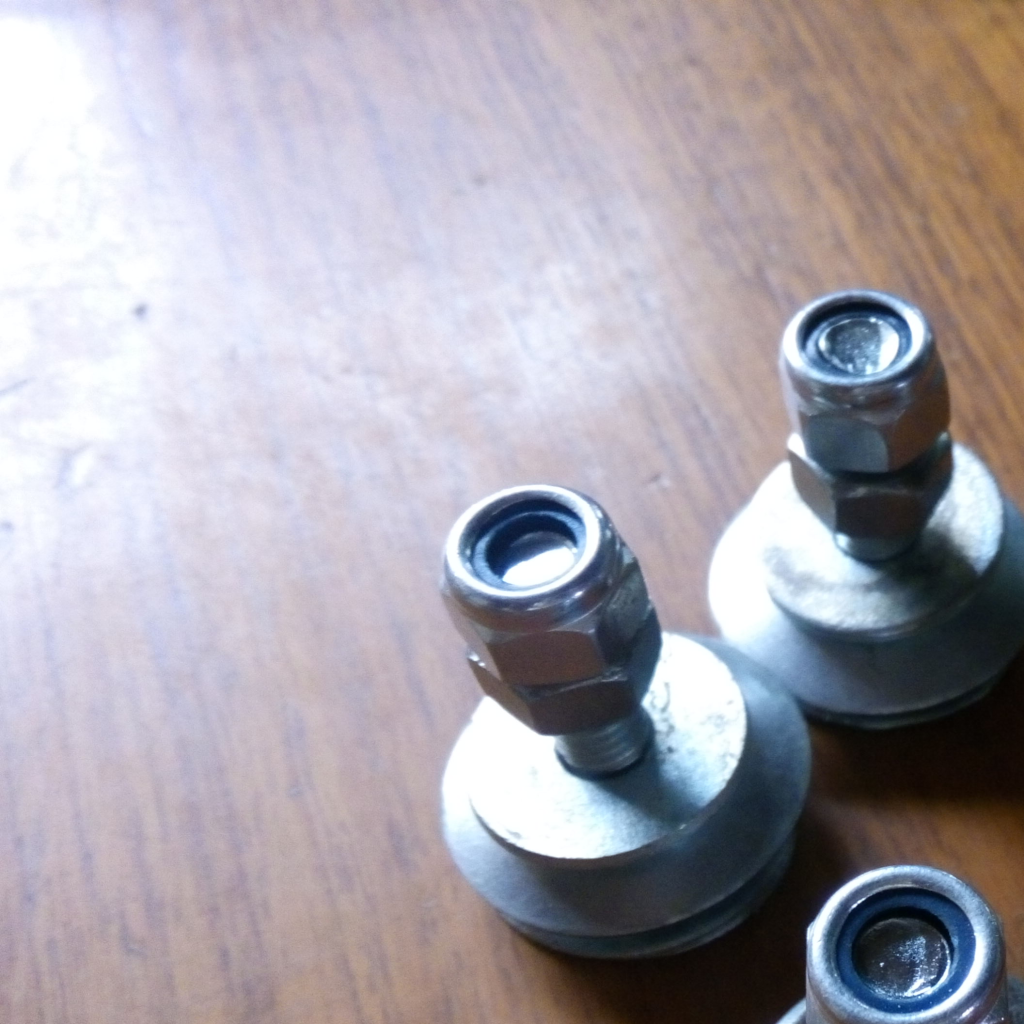

3.BUCKET BOLTS

  •  Large Bolt Head Diameter for rigidness
  •  Concave bolt head with 4 lugs on the underside to prevent rotation when tightening
  •  Mild Steel Bolts are duly Galvanized for Longer life
  •  Bolts are available in stainless steel (On request)
  •  Extra nylock Nut available of 6mm/8mm/10mm size
